Achieve Superior Vibration Isolation with HDB SERIES

Rubber compression springs are extensively utilized in vibrating screens across various industrial sectors, offering distinct advantages over metal springs. Their reduced internal friction ensures effective noise elimination even under heavy loads or high pressures.

Characteristics:

Long Service Life:

DAMP Buffer Series springs boast exceptional durability, ensuring prolonged usage without compromising performance.

Excellent Damping Effects:

These springs exhibit reduced resonance and superior damping characteristics, effectively absorbing vibrations for smoother operation.

Resilient Properties:

Cold-resistant, air-tight, waterproof, and insulating attributes make these springs suitable for diverse environmental conditions.

Versatile Shape:

The shape of rubber springs is not limited, allowing for significant elastic deformation and easy implementation of non-linear requirements, ensuring excellent vibration isolation and sound insulation.

Advantages:

Tailorable Shape and Stiffness:

Rubber springs can be tailored to meet specific design requirements.

Small Elastic Modulus:

Allows for significant elastic deformation, facilitating desired non-linear characteristic.

Higher Internal Resistance:

Ensures efficient shock absorption and sound insulation.

Multidirectional Load Capacity:

These springs can withstand simultaneous loads in multiple directions, simplifying system structures.

Simple Installation and Maintenance:

Requires no lubrication, making installation and removal easy.

Applications:

The HDB Series finds extensive application across a range of industries and machinery types, including.

Vibrating Screens:

DB springs isolate vibration in vibrating screens, ensuring smoother operation and enhanced screening efficiency.

Dewatering Screens:

These springs minimize noise and improve the dewatering process in dewatering screen.

Heavy Machinery:

In crushers, conveyors, and compactors, HDB Series springs dampen vibrations, reducing wear and tear and prolonging equipment lifespan

Weighing Bridge Machinery:

HDB springs provide essential vibration isolation for weighing bridge machinery, ensuring accurate and stable measurement.

Custom Manufacturing:

We offer custom manufacturing services for vibrating screen rubber compression springs, tailored to specific specifications or samples. Additionally, we maintain a stock of standard sizes for immediate availability. For inquiries or assistance, please feel free to contact us. The HDB Series rubber compression springs provide a reliable solution for vibration isolation and noise reduction in vibrating screens and various industrial applications, contributing to enhanced performance, durability, and efficiency in diverse operational environments.

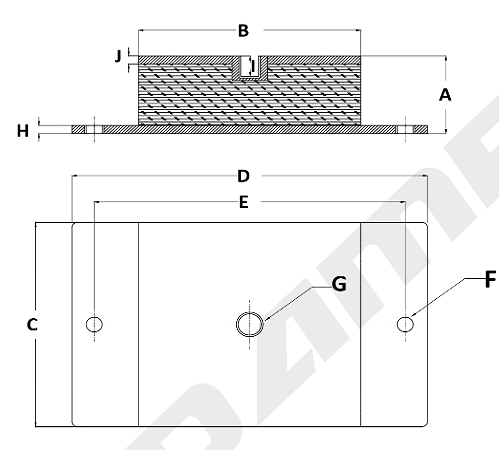

Diagram:

S.NO	MODEL	LOAD (kgs)	A	B	C	D	E	F	G	H	I	J
1	HD B-250-250	1500-4000	80	250	250	453	350	Ø13	M24x3	6.3	20	10
2	HD B-300-250	2000-6000	80	300	250	453	350	Ø13	M24x3	6.3	20	10

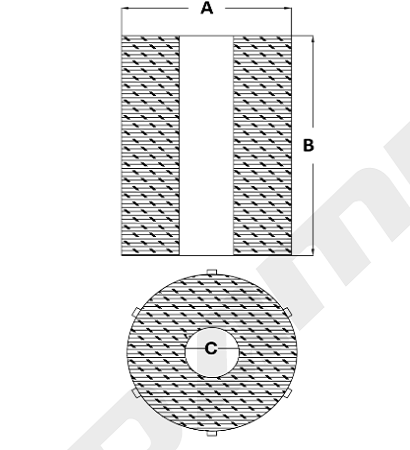

HD BCD Series:

S.NO	MODEL	A	B	C
1	SMALL BCD BUFFER - 1	115	175	25
2	SMALL BCD BUFFER - 2	125	175	38
3	MEDIUM BCD BUFFER	165	175	35
4	BIG BCD BUFFER	203	203	54

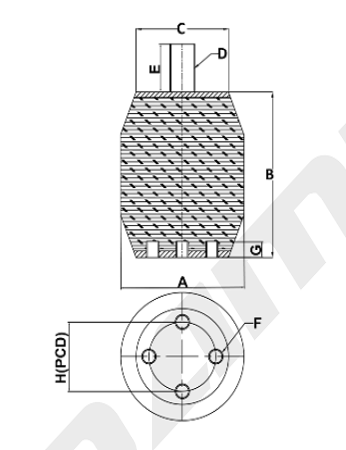

HDB M24 - BUFFER

S.NO	MODEL	A	B	C	D	E	F	G	H
1	HD 120155M24 BUFFER	120	155	90	M24*3 MM	45MM	M12*1.75 MM	25MM	65

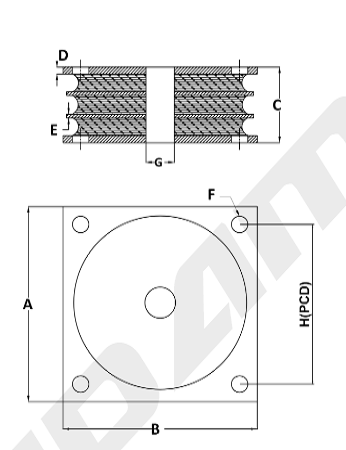

HDB 165-165 BUFFER

S.NO	MODEL	A	B	C	D	E	F	G	H
1	HD 165x165MM PLATE BUFFER (WITH HOLE)	165	165	60	6	6	14	25	135

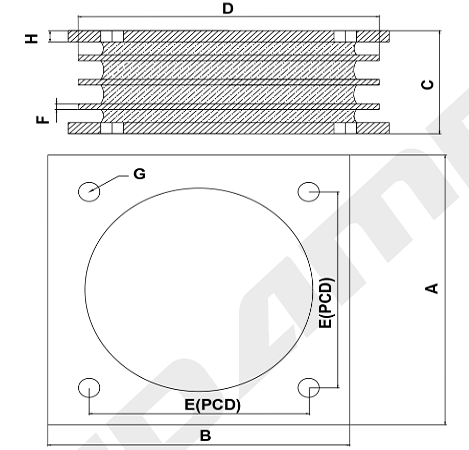

HDB BUFFER

S.NO	MODEL	A	B	C	D	E	F	G	H
1	HD 165*165MM PLATE BUFFER	165	165	60	155	135	6	14	6
2	HD 250*250MM PLATE BUFFER	250	250	82	230	182	6	18	10

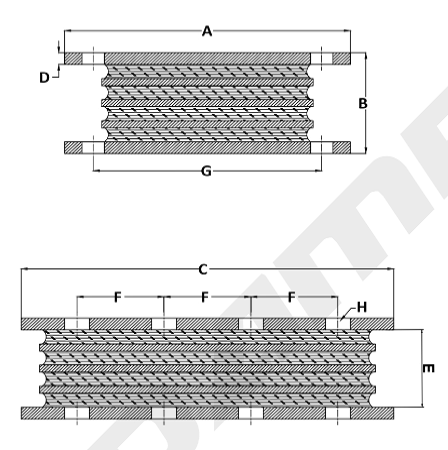

HDB SARTORIUS BUFFER

S.NO	MODEL	A	B	C	D	E	F	G	H
1	SARTORIOUS BUFFER	300	104	470	20	64	100	250	Ø14

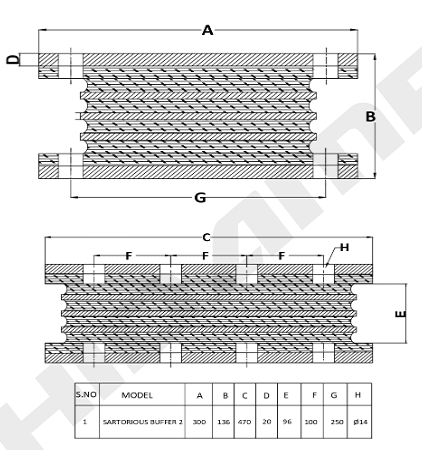

HDB SARTORIUS BUFFER 2

S.NO	MODEL	A	B	C	D	E	F	G	H
1	SARTORIOUS BUFFER 2	300	136	470	20	96	100	250	Ø14

Graph

S NO	TYPE	LOAD	DEFLECTION
1	HD B 250X250	2500	1.3
		3000	1.5
		3500	1.7
		4000	1.9
2	HD B 300X250	3000	2.0
		4000	2.2
		5000	2.4
		6000	2.6

S NO	TYPE	LOAD	DEFLECTION
1	SMALL BUFFER	150	5
		260	10
		450	15
		625	20
2	MEDIUM BUFFER	225	5
		485	10
		775	15
		1060	20
3	BIG BUFFER	900	5
		1825	10
		2750	15
		3780	20
4	165X165 BUFFER	2200	2
		3500	3
		5100	4
5	250X250 BUFFER	4500	3
		6000	4
		7000	5
6	M24 BUFFER	200	5
		480	10
		680	15
		900	20
