HDF Mounting Series

Single Service

Enhance Mobility and Stability with HDF Mounting Series

The HDF Mounting Series presents a versatile solution for a wide range of industrial applications, offering mobility and stability in diverse operating conditions. These foot mounts, designed to accommodate mobile operations, provide effective isolation on uneven surfaces, making them indispensable in various industries. Let's explore the features and applications of the HDF Mounting Series across different sectors.

Industry Applications

  • Mobile Applications
  • Automation Setups
  • Precision Machines
  • Construction Equipment
  • Food Industry
  • Lab Equipments

Mobile Applications:

The HDF Mounting Series is ideally suited for mobile applications, providing stability and isolation in dynamic environments. Whether it's mobile machinery, vehicles, or equipment, these foot mounts ensure reliable performance and minimize vibrations, contributing to smoother operation and enhanced safety.

Rotatable Studs for Versatile Installation:

Featuring rotatable studs, these mounts offer versatility in installation, allowing them to be adjusted to accommodate internal threaded provisions in machines. This flexibility enables seamless integration into automation setups, precision machines, and other equipment, enhancing their stability and performance.

Wide Range of Applications:

From automation setups and precision machines to construction equipment and the food industry, HDF Mounts find applications across diverse sectors. In precision machines, they provide essential stability, minimizing vibrations and ensuring precise operation. In the food industry, they contribute to hygiene and safety by providing stable support for equipment.

Material Options for Customization:

Available in Mild Steel, Nylon, and Stainless Steel (304 Grade), HDF Mounts offer versatility and customization to suit specific application requirements. The inclusion of a rubber pad at the base further enhances stability and vibration isolation, ensuring optimal performance in varying environments.

Customizable Stud Length:

To accommodate specific needs, HDF Mounts can be ordered with different stud lengths, allowing for customization based on equipment and installation requirements. This flexibility ensures compatibility and ease of installation across different setups and surfaces.

Conclusion:

In conclusion, the HDF Mounting Series offers a versatile and customizable solution for enhancing mobility and stability in various industrial applications. With features such as rotatable studs, material options, and customizable stud lengths, these foot mounts provide reliable performance across mobile operations, automation setups, precision machines, and more.

FOOT MOUNT MODEL LOAD (KG/PC)
HDF 40 MILD STEEL 20 - 50
HDF 60 MILD STEEL 50 - 80
HDF 75 MILD STEEL 80 - 120
HDF 100 MILD STEEL 120 - 150
HDF 150 MILD STEEL 500 - 1500

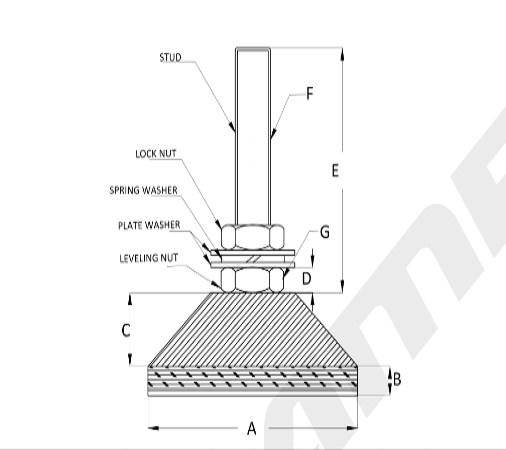

Diagram:

Single Service
S.NO MODEL LOAD (kgs) A B C D E F G
1 HD F 40 20-50 40 10 30 10 50 M8 16
2 HD F 60 50-80 60 10 30 10 75 M12 19
3 HD F 75 80-120 75 10 30 10 75 M16 24
4 HD F 100 120-150 100 10 30 10 75 M16 30
5 HD F 150 500-2000 150 12 30 10 75 M24 30
  • Available in Mild Steel & SS-304
  • For Mild Steel: Zinc Blue/yellow Passivation or Nickel Chromium plating for most general application.
  • For SS-304: For Food & Pharmaceutical application.

Graph

Image 1
Image 2
Image 2
Image 2
S NO TYPE LOAD DEFLECTION
1 HD F-60 50 0.75
60 0.85
70 1
80 1.2
2 HD F-75 80 0.45
90 0.5
100 0.51
120 0.57
3 HD F-100 120 0.22
130 0.25
140 0.27
150 0.29
4 HD F-150 500 0.5
1000 0.82
1500 1.1
2000 1.2
