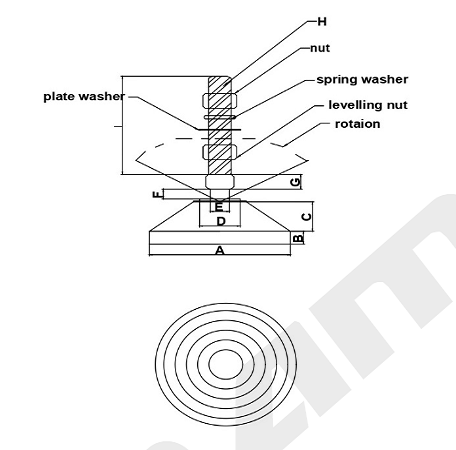

Angular Leveling With Swivel Type Leveling Mounts - HDFP SERIES

The HDFP Series of leveling mounts offers a versatile solution for adjusting and stabilizing machinery and equipment across various industrial applications. With a focus on flexibility and durability, these mounts feature a unique design tailored to meet the demands of modern manufacturing environments.

Industry Applications

Machine Tools
Electronic Racks Setups
Precision Machines
Industrial Equipment
Food Industry
Lab Equipments
Similar Applications Requiring Angular Leveling Setup

Key Features:

Adjusting Bolt Shape Type: Equipped with a rubber foot type adjusting bolt, ensuring optimal stability and vibration dampening.

Thread Material:

Available in both Carbon Steel and SS304 variants, providing options for different application requirements and environmental conditions.

Thread Surface Treatment:

Carbon steel bolts are treated with a galvanize solution for enhanced corrosion resistance and a bright appearance.

Pad Bottom Material:

Nylon pads at the base of the mounts provide durable support and protect surfaces from scratches or damage during leveling.

Thread Size and Length:

Available in nominal thread sizes of m12, m16, and m20, with thread lengths ranging from 100mm to 200mm, catering to various machinery configurations and installation needs.

360° Tiltable:

These leveling mounts offer full 360° tilting capability, allowing for precise adjustment and alignment in any direction.

Smooth Screw Assembly:

The screws are designed to be smooth and easily adjustable manually, facilitating hassle-free assembly and setup.

Chromate Plated Carbon Steel:

Carbon steel components are chromate plated to ensure superior corrosion resistance and longevity, even in challenging industrial environments.

Swivel Base with Angular Tilt:

The mounts feature a plastic swivel base that allows for angular tilt of up to 15 degrees, enabling adaptation to uneven surfaces and providing solid leveling and support.

Conclusion:

The HDFP Series leveling mounts are designed to meet the rigorous demands of industrial settings, providing reliable support, stability, and flexibility for a wide range of equipment and machinery. With their robust construction and versatile features, these mounts ensure optimal performance and longevity in diverse operational environments.
