HDG Machine Series : Enhancing Efficiency and Reliability

In today's rapidly evolving industrial landscape, the efficient operation of machinery is paramount to success. With advancements in technology and engineering, industries worldwide are constantly seeking ways to improve productivity, reliability, and safety. Among the crucial components driving these improvements are machine mounts, which play a pivotal role in ensuring stable and efficient operation across a wide range of industrial applications. In this paper, we delve into the significance of machine mounts, particularly focusing on the innovative HDG Series, exploring its features, applications, and the benefits it offers to various industries.

Overview of Industrial Machinery:

Industrial machinery encompasses a vast array of equipment utilized in manufacturing, construction, material processing, and beyond. From lathes and milling machines for shaping materials to hydraulic presses for forming and molding, each machine serves a specific purpose in facilitating production processes. Additionally, generators, compressors, and other power equipment provide essential energy sources, while specialized machines like rice sorting machines contribute to the efficiency of food processing operations.

Industry Applications

  • Milling Machines
  • Power Press
  • Drilling Machine
  • Pedestal Grinders
  • Generators
  • Hydraulic Presses
  • Rice Sorting Machines
  • Compressors
  • Plastic Injection Molding Machines

Importance of Machine Mounts:

Machine mounts, though often overlooked, play a critical role in the performance and longevity of industrial machinery. These mounts serve to dampen vibrations, reduce noise, and provide stability, ultimately improving machine accuracy, prolonging equipment lifespan, and enhancing workplace safety. By isolating machinery from external disturbances, such as floor vibrations and operational impacts, machine mounts contribute to smoother operation and higher precision, particularly in applications requiring tight tolerances.

Introducing the HDG Series Machine Mounts:

The HDG Series represents a significant advancement in machine mounting technology. Engineered with precision and designed for versatility, these mounts offer exceptional resilience and damping characteristics. The HDG Series is capable of effectively isolating machinery from vibrations within a specific frequency range, typically between 16 to 25 Hz, ensuring optimal performance across various industrial environments. Whether it's a lathe, milling machine, hydraulic press, or compressor, the HDG Series provides reliable support and vibration isolation, enhancing overall efficiency and productivity.

Applications and Benefits:

The applications of HDG Series machine mounts span a wide range of industries and machinery types. In metalworking facilities, these mounts ensure precise machining operations by minimizing vibration-induced errors. In food processing plants, they contribute to the smooth operation of rice sorting machines, maintaining product quality and throughput. Moreover, in power generation and construction sectors, the stability provided by HDG Series mounts ensures safe and reliable operation of equipment, minimizing downtime and maintenance costs.

Conclusion:

In conclusion, machine mounts are integral components of industrial machinery, contributing significantly to performance, reliability, and safety. The HDG Series machine mounts, with their advanced design and resilient properties, represent a pinnacle of engineering innovation, offering unparalleled vibration isolation and stability. As industries continue to evolve and demand higher levels of efficiency, the role of machine mounts, particularly those like the HDG Series, will remain indispensable in optimizing operational processes and driving overall productivity.

Model Dia Height Load (Kgs)
Type A Type B Type C Type D
Min Max Min Max Min Max Min Max
HDG 100 40 MM 22 MM 50 100 35 50 30 40 20 30
HDG 200 50 MM 39 MM 100 200 70 100 60 75 40 50
HDG 300 65 MM 40 MM 100 300 70 200 60 150 50 125
HDG 400 85 MM 42 MM 200 400 115 225 85 175 65 125
HDG 600 100 MM 46 MM 400 600 300 500 225 440 140 275
HDG 800 125 MM 48 MM 600 800 300 500 225 400 175 300
HDG 1000 145 MM 51 MM 700 1100 675 825 570 660 500 600
HDG 1200 165 MM 55 MM 900 1400 450 750 300 600 275 450
HDG 1600 185 MM 65 MM 1200 1800 1000 1300 900 1100 800 1000
HDG 2000 200 MM 65 MM 1500 2000 1400 1750 1250 1625 1150 1300
HDG 2500 250 MM 85 MM 2000 2500 1750 2270 1675 2125 1450 1850
HDG 3000 300 MM 102 MM 2400 3000 2000 2750 1950 2600 1850 2450

A, B, C & D denote for various rubber hardness values. Please mention your required hardness while ordering. e.g. HDG 200 – A. A-65-70 A B-60-65 A C-55-60 A D-50-55 A.

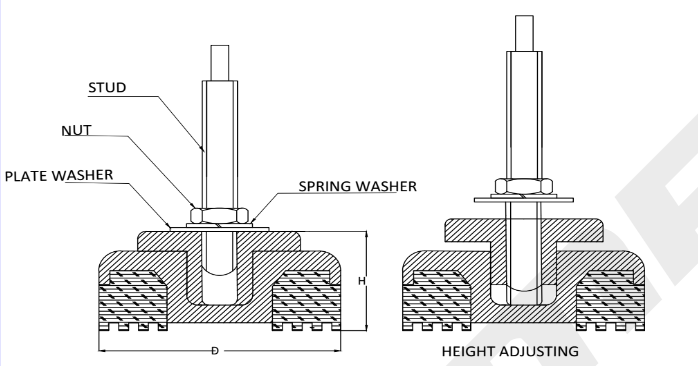

Diagram:

Single Service
S.NO MODEL D (DIAMETER)
(mm)		 H (HEIGHT)
(mm)		 ADJUSTABLE
LEVEL (mm)		 LOAD (kgs)
1 HDG 100xM10x75 40 22 NIL 50-100
2 HDG 200xM10x75 50 39 8 100-200
3 HDG 300xM10x75 65 40 8 100-300
4 HDG 400xM12x90 85 42 8 200-400
5 HDG 600xM12x90 100 46 10 400-600
6 HDG 800xM16x100 125 48 10 600-800
7 HDG 1000xM16x100 145 51 12 700-1100
8 HDG 1200xM20x100 165 55 12 900-1400
9 HDG 1600xM20x100 185 65 12 1200-1800
10 HDG 2000xM20x100 200 65 12 1500-2000
11 HDG 2500xM24x150 250 85 10 2000-2500
12 HDG 3000xM24x150 300 102 10 2400-3000

Environmental Data:

  • Natural Rubber Operating Temp: -30 C to 70 C.
  • Neoprene Rubber Operating Temp: -30 C to 80C and are resistant to Oils, most Solvents and Ozone.

Graph
