HDG-SS Mounting Series

Single Service

Enhanced Vibration Isolation with HDG SS Stainless Steel Mounts Series

The HDG SS Stainless Steel Mounts Series represents a breakthrough in vibration isolation technology, offering a wide load range mounting solution suitable for various industries and applications. With exceptional resilient properties and damping characteristics, these mounts are ideal for use in medical, food processing industries, and virtually any type of machinery or equipment. Let's explore the features and benefits of the HDG SS Stainless Steel Mounts Series.

Industry Applications

  • Food Processing Industries
  • Medical Equipment
  • Drilling Machine
  • Precision Machines
  • Mobile Application
  • Construction Equipment

Versatile Application:

The HDG SS Stainless Steel Mounts Series is designed for versatility, making it suitable for a wide range of industries and applications. Whether it's medical equipment, food processing machinery, or production machines, these mounts provide reliable vibration isolation, ensuring smooth and efficient operation.

Excellent Resilient Properties:

One of the key features of the HDG SS Stainless Steel Mounts Series is its excellent resilient properties. Engineered to withstand dynamic loads and vibrations, these mounts offer reliable performance even in demanding environments. They effectively dampen vibrations, minimizing wear and tear on machinery and equipment.

Optimal Natural Frequency:

Operating at its best between 16 to 25 Hz of nominal natural frequency, the HDG SS Stainless Steel Mounts Series provides effective vibration isolation across a wide frequency range. This ensures optimal performance and stability, enhancing the overall efficiency of machinery and equipment.

Material Grade SS 304:

The HDG SS Stainless Steel Mounts Series is constructed using high-quality SS 304 stainless steel, renowned for its corrosion resistance and durability. This material grade is particularly well-suited for applications in the automobile, food, pharmaceutical, and water processing industries, where exposure to corrosion is expected. By using SS 304 stainless steel, these mounts offer long-lasting performance and reliability, even in harsh operating environments.

Conclusion:

In conclusion, the HDG SS Stainless Steel Mounts Series offers a reliable and versatile solution for vibration isolation in various industries and applications. With its exceptional resilient properties, optimal natural frequency, SS 304 stainless steel construction, and environmental adaptability, these mounts provide reliable performance and durability. Whether it's in medical facilities, food processing plants, or production lines, the HDG SS Stainless Steel Mounts Series ensures smooth and efficient operation, contributing to increased productivity and reduced maintenance costs.

Available Models

  • HDG 200 SS
  • HDG 400 SS
  • HDG 300 SS
  • HDG 600 SS
  • HDG 800 SS
  • HDG 1000 SS
  • HDG 1200 SS
  • HDG 1600 SS
  • HDG 2000 SS
  • HDG 2500 SS

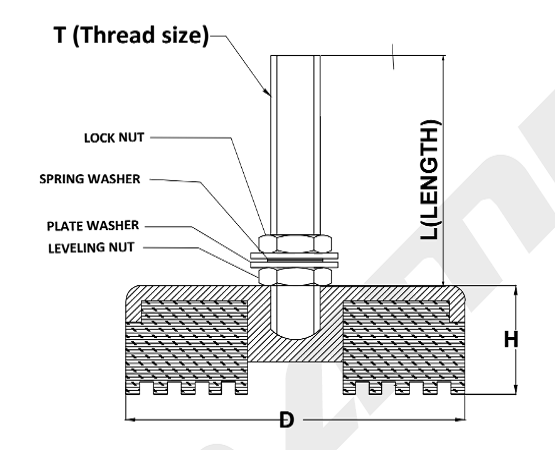

Diagram:

Single Service
S.NO MODEL D (DIAMETER)
(mm)		 H (HEIGHT)
(mm)		 TxL LOAD (kgs)
1 HDG 200 SS 75 28 M12 x 100 100-200
2 HDG 400 SS 85 35 M12 x 100 200-400
3 HDG 600 SS 100 38 M16 x 100 400-600
4 HDG 800 SS 125 40 M16 x 100 600-800
5 HDG 1000 SS 145 40 M20 x 100 700-1000
6 HDG 1200 SS 165 45 M20 x 100 900-1400
7 HDG 1600 SS 185 65 M20 x 100 1200-1800
8 HDG 2000 SS 200 50 M24 x 100 1500-2000
9 HDG 2500 SS 250 60 M24 x 100 2000-2500

Graph

Image 1
Image 2
Image 3
Image 4
S NO TYPE LOAD DEFLECTION
1 HDG SS
200		 100 1.4
1501.6
2001.8
2502
2 HDG SS
400		 150 1.8
2002.1
3002.8
4003.5
3 HDG SS
600		 300 2.8
4003.3
5003.6
6004
4 HDG SS
800		 200 0.5
4001
6001.4
8001.8
