Optimize Performance with HDI MOUNTING SERIES

The HDI Mounting Series, featuring Hidamp Instra mounts (Rubber Dampers), offers a comprehensive solution for supporting loads and reducing shock transmission in a variety of industrial applications. From motors and relays to control panels and air conditioners, these mounts provide reliable performance and stability across diverse sectors. Let's explore the features and applications of the HDI Mounting Series in detail.

Industry Applications

Motors
Relays
Control Panels
Air Conditioners
Lab Equipment
Hollow Block Machines
Compressors
Centrifuge

Versatile Applications:

The HDI Mounting Series is designed to support loads ranging from 1 kg to 400 kgs per mount in compression and up to 200 kgs in shear. This versatility allows for its use in a wide range of applications, including control panels, HVAC equipment, relays, and fans, among other.

Efficient Shock Absorption:

Rubber Dampers, a key component of the HDI Mounting Series, are engineered to reduce the transmission of shock to the surrounding structure. These dampers deflect under applied shock loads, minimizing vibrations and ensuring smooth operation of equipment.

Sturdy Construction:

Featuring a simple yet robust design, the HDI Mounting Series is built to withstand the rigors of industrial environments. The rubber is bonded to a metal plate, providing durability and reliability in demanding conditions.

Multiple Configuration Options:

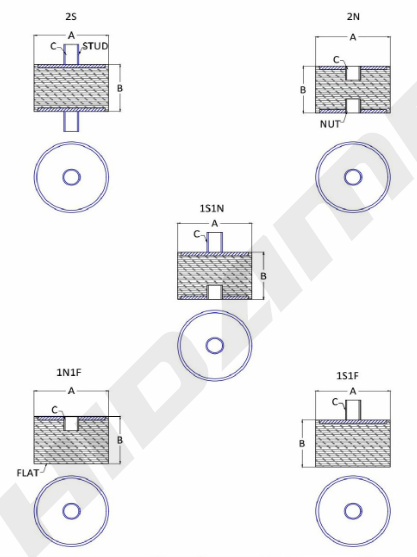

The construction of rubber dampers in the HDI Mounting Series offers flexibility with various configuration options. These include Double Side Studs (2S), Double Side Female Bush (2N), or One Side Studs and One Side Female Bush (1S1N), allowing for customized solutions to meet specific application requirements.

Standard Parameters:

Rubber dampers in the HDI Mounting Series typically have a Shore Hardness of 55-60 A in Natural Rubber. Additionally, MS washers are zinc passivated or coated with black paint, providing corrosion resistance and longevity based on customer preferences.

Enhanced Performance and Reliability:

By incorporating the HDI Mounting Series into industrial equipment and machinery, users can expect enhanced performance, reduced vibrations, and improved stability. These mounts play a crucial role in minimizing downtime, optimizing efficiency, and prolonging the lifespan of equipment.

Conclusion:

In conclusion, the HDI Mounting Series offers a versatile and reliable solution for supporting loads and reducing shock transmission in various industrial applications. With its efficient shock absorption, sturdy construction, and multiple configuration options, these mounts provide enhanced performance and reliability across diverse sectors.

Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel (MM)			Force Kp	Spring Travel (MM)
			43sh	57sh	68sh		43sh	57sh	65sh
8	8	0.5	0.35	0.12	0.08	0.3	0.71	0.39	0.27
		1.5	1.06	0.38	0.26	0.6	1.43	0.79	0.55
		3	2.12	0.75	0.53	1	2.38	1.32	0.91
10	10	1	0.45	0.22	0.15	0.4	0.81	0.45	0.31
		3	1.35	0.57	0.47	1	2.03	1.13	0.78
		5	2.26	1.13	0.78	1.3	2.64	1.47	1.01
15	8	1.5	0.15	0.08	0.05	0.5	0.33	0.18	0.13
		4	0.38	0.21	0.15	1.5	2.71	0.58	0.39
		9	0.88	0.49	0.34	3.5	6.11	1.32	0.91
15	15	1.5	0.5	0.25	0.15	0.5	0.67	0.37	0.26
		4	1.47	0.66	0.41	1.5	2.03	1.13	0.78
		9	3.31	1.50	0.94	3.5	4.07	2.26	1.56
15	30	1.5	1	0.61	0.49	0.5	0.96	0.84	0.60
		4	2.84	1.63	1.09	1.5	2.88	0.25	1.82
		9	6.4	3.68	2.45	3	5.77	0.51	3.64
18	8.5	2	0.2	0.12	0.07	1	0.43	0.24	0.16
		6	0.6	0.36	0.23	3	1.29	0.72	0.49
		10	1.02	0.6	0.39	5	2.16	1.2	0.83
20	15	3	0.36	0.23	0.15	1.5	1.14	0.63	0.13
		9	1.08	0.69	0.48	3	2.29	1.27	0.82
		15	1.8	1.15	0.8	6	4.58	2.54	1.64

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel			Force Kp	Spring Travel
			43sh	57sh	68sh		43sh	57sh	65sh
20	15	3	0.36	0.23	0.15	1.5	1.14	0.63	0.13
		9	1.08	0.69	0.48	3	2.29	1.27	0.82
		15	1.8	1.15	0.8	6	4.58	2.54	1.64
20	20	3	0.6	0.36	0.24	1.5	1.62	0.9	0.62
		9	1.8	1.08	0.74	3	3.24	1.8	1.24
		15	3	1.8	1.24	6	6.45	3.5	2.49
20	25	3	0.83	0.51	0.35	1.5	2.1	1.16	0.8
		9	2.5	1.55	1.07	3	4.2	2.33	1.61
		15	4.17	2.59	1.79	6	8.4	4.66	3.23
25	10	5	0.1	0.07	0.05	2	0.57	0.27	0.18
		15	0.4	0.22	0.15	6	1.17	0.81	0.5
		25	0.7	0.37	0.26	10	2.85	1.35	0.94
25	15	5	0.45	0.22	0.17	2	0.89	0.49	0.34
		15	1.22	0.67	0.52	6	2.68	1.49	1.03
		25	2.03	1.13	0.87	10	4.48	2.48	1.72
25	20	5	0.6	0.36	0.25	2	1.38	0.7	0.5
		15	1.7	1.06	0.76	6	4.15	2.17	1.5
		20	2.9	1.81	1.28	10	6.92	3.62	2.5

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel			Force Kp	Spring Travel
			43sh	57sh	68sh		43sh	57sh	65sh
25	25	5	0.85	0.53	0.40	2	1.17	0.96	0.85
		15	2.5	1.58	0.81	6	5.13	2.85	1.97
		25	4.2	2.6	1.8	10	8.55	4.75	3.29
25	30	5	1.1	0.7	0.48	2	2.11	1.17	0.71
		15	3.3	2.1	1.45	6	6.35	3.53	2.44
		25	5.6	3.5	2.4	10	10.5	5.88	4.07
30	15	7	0.27	0.15	0.10	3	0.93	0.51	0.36
		21	0.8	0.4	0.3	9	2.8	1.55	1.07
		35	1.26	0.75	0.5	15	4.66	2.59	1.79
30	20	7	0.6	0.34	0.23	3	1.35	0.75	0.52
		21	1.6	1.03	0.71	9	4.07	2.26	1.55
		35	2.7	1.72	1.19	15	6.75	3.77	2.61
30	25	7	0.78	0.51	0.34	3	2.97	0.99	0.68
		21	2.35	1.54	1.04	9	5.34	2.97	2.05
		35	3.92	2.55	1.73	15	8.91	4.95	3.34
30	30	7	1.07	0.55	0.45	3	2.2	1.22	0.84
		21	3.91	1.95	1.35	9	6.62	3.67	2.54
		35	5.36	3.25	2.25	16	11	6.13	4.24

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel FIN MM			Force Kp	Spring Travel FIN MM
			43sh	57sh	68sh		43sh	57sh	65sh
40	30	10	0.75	0.52	0.33	5	2.5	1.15	0.79
		30	2.29	1.55	0.99	15	6.2	3.44	2.38
		60	4.59	3.13	1.98	25	10.3	5.74	3.97
40	40	10	1.19	0.75	0.51	5	2.86	1.59	1.10
		30	3.5	2.2	1.53	15	8.59	4.77	3.3
		60	7.15	4.4	3.07	25	14.3	7.95	5.5
50	20	20	0.37	0.20	0.12	10	1.52	0.90	0.52
		60	1.11	0.60	0.38	20	3.25	1.81	1.25
		100	1.85	1.00	0.63	40	6.51	3.62	2.50
50	25	20	0.50	0.34	0.23	10	2.13	1.18	0.82
		60	1.90	1.03	0.71	20	4.27	2.37	1.64
		100	3.19	1.72	1.17	40	3.55	4.75	3.29
50	30	20	0.91	0.50	0.35	10	2.62	1.47	1.01
		60	2.73	1.52	1.05	20	5.29	2.94	2.03
		100	4.55	2.53	1.75	40	10.6	5.88	4.07
50	40	20	1.36	0.75	0.54	10	3.6	2.03	1.14
		60	4.07	2.3	1.52	20	7.33	4.07	2.82
		100	5.79	3.84	2.17	40	14.7	8.14	5.64

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel FIN MM			Force Kp	Spring Travel FIN MM
			43sh	57sh	68sh		43sh	57sh	65sh
50	45	20	1.67	0.92	0.54	10	4.17	2.32	1.06
		60	5.01	2.78	1.92	20	8.35	4.64	3.21
		100	8.35	7.04	3.21	40	16.7	9.98	6.42
50	50	20	3.95	1.15	0.75	10	4.58	2.50	1.80
		60	5.8	3.47	2.25	20	9.37	5.20	3.50
		100	9.75	5.78	3.75	40	18.7	10.4	7.20
70	45	30	1.11	0.51	0.41	20	4.15	2.25	1.55
		100	3.71	2.93	1.36	40	8.13	4.50	3.11
		190	7.00	3.91	2.59	75	15.5	8.44	5.84
75	40	40	0.96	0.53	0.37	20	3.07	1.71	1.18
		120	2.88	1.60	1.11	45	6.92	3.84	2.66
		220	5.29	2.93	2.03	90	13.9	7.55	5.32
75	50	40	1.42	0.79	0.54	20	3.53	1.96	1.35
		120	4.25	2.37	1.54	45	7.90	4.41	3.05
		220	7.82	4.34	3.00	90	15.9	8.82	6.11
75	60	40	1.88	1.04	0.72	20	4.88	2.71	1.88
		120	5.64	3.10	2.16	45	11	6.11	4.23
		22	10	5.74	3.97	90	22	12.2	8.46

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel FIN MM			Force Kp	Spring Travel FIN MM
			43sh	57sh	68sh		43sh	57sh	65sh
100	40	80	0.81	0.41	0.27	35	2.85	1.58	1
		200	2.03	1.02	0.69	75	6.11	3.39	2.35
		400	4.07	2.05	1.39	150	12.2	6.79	4.7
100	50	80	1.2	0.07	0.49	35	3.74	2.57	1.43
		200	3.19	1.77	1.22	75	8.02	5.51	3.08
		400	5.38	3.55	2.45	150	15	11	6.17
100	55	80	1.51	0.8	0.53	35	4.18	2.32	1.95
		200	3.79	2.18	1.5	75	8.97	4.96	4.18
		400	7.5	4.35	3	150	18	9.97	8.37
100	60	80	1.62	0.99	0.69	35	4.63	2.57	1.78
		200	4.55	2.49	1.72	75	9.93	5.51	3.81
		400	9.13	4.96	3.45	150	19.9	11	7.63
100	75	80	2.57	1.4	0.97	35	5.97	3.31	2.29
		200	5.55	3.51	2.43	75	12.6	7.1	4.92
		400	13.1	7.02	4.86	150	25.6	14.2	9.84
150	55	200	1.14	0.65	0.44	75	3.81	2.02	1.50
		600	3.43	1.97	1.33	175	8.91	4.73	3.50
		1000	5.72	3.28	2.22	250	2.73	5.75	5

HIDAMP INDUSTRIAL MOUNTINGS
Instrument - HDI Series
D	H	Pressure Loading				Shear Loading
		Force Kp	Spring Travel FIN MM			Force Kp	Spring Travel FIN MM
			43sh	57sh	68sh		43sh	57sh	65sh
150	60	200	1.4	0.8	0.54	75	4.24	2.45	1.66
		600	4.22	2.42	1.52	175	9.9	5.72	3.88
		1000	7.03	4.03	2.7	250	14.1	8.17	5.55
150	75	200	2.33	1.51	0.89	75	5.51	3.58	2.15
		600	7	4.84	2.69	175	12.9	8.35	5.02
		1000	11.5	8.05	4.48	250	18.4	11.9	7.18
200	100	300	2.58	1.45	1.03	150	8.59	4.77	3.3
		1000	8.95	4.89	3.44	350	20.1	11.1	7.71
		2000	17.9	9.79	6.88	600	34.4	19.1	13.2

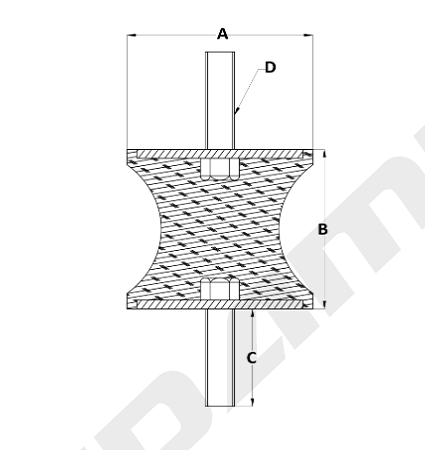

Diagram:

S.NO	MODEL	A	B	C	D
1	Ø36x36xM8	36	36	22	M8x1

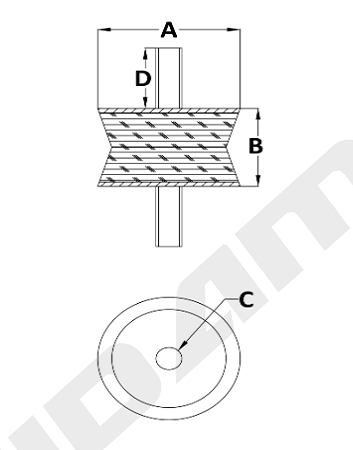

S.NO	MODEL	A	B	C	D
1	Ø55x35xM10	55	35	M10x1.5	27

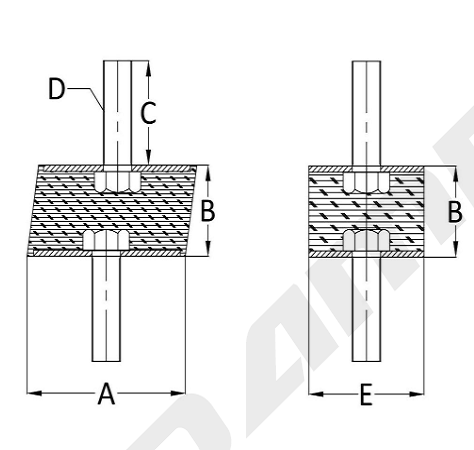

S.NO	MODEL	A	B	C	D	E
1	SQUARE MOUNT	55	29	33	M10x1.5	40
